首页>650cc彩票>Slip ring for Operating Table

产品类型:Slip ring for Operating Table 产品型号:PSR-CM-9 Slip ring for Operation Table
PSR-CM-9 is a designed specify for operation table, it combine signal and power and transmis with up to 9 way , 3 way for 10A power and 6 way for signal , the fiber gold brush application for high quality and reliability , it has been applicated in many operating table all of the world...
  • 性能

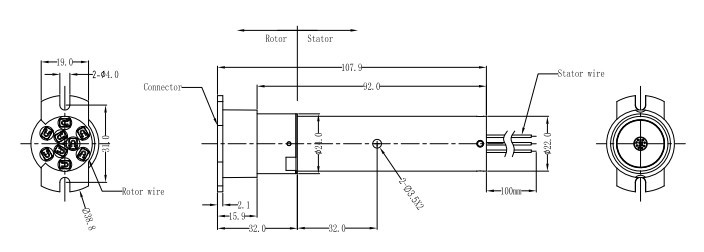

  • 尺寸图
  • 特征
  • 安装方法

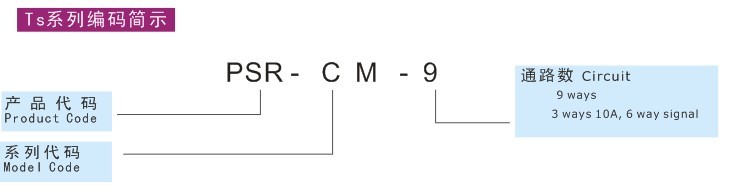

  • 订货号
  • 下载

Electrical Spec.

Options

Circuit

3-9

Flange for set up

Rating voltage

380VAC

Cable exit for terminal is optional

Rating current

2A



Insulation resistance

1000MΩ@500VDC



Dielectric strength

600VDC@50Hz



Electrical noise

10mΩ@6VDC,50mA, 5Rpm



 Mechanical Spec

 Environment

Speed

300Rpm

Working temperature

-40~+80

Torque

40N.cm

Mechanical vibration

MIL-SID-810E

Seal class

IP54

Humidity

60%

Contact material

Precious Metal

Materials

Lead Free,RoHS compliant

Lead Wire

Teflon wire

CE Certified

YES

Life

30million revolutions



¤  Feature


♦Fiber brush technology provides maintenace free operation(no cleaning or lubrication required

♦Moudel design ; Meet the most of requirement

♦More install method for option

♦Can combine signal and power in same slip ring


¤ Typical Application

♦Medical equipment

    Operating Table with shadowless lamp
